Relative Permeability and Water Cut
Since we are interested in how much oil or gas will flow from a well, and would rather not have any water flow, it is necessary to calculate relative permeability and water cut to determine how good a well might be.

Relative permeability for water.
      1: Krw = (Sw - SWir) / (1 - SWir)

Relative permeability for oil.
      2: Kro = (0.9 - Sw) / (0.9 - SWir)

Relative permeability for gas.
      3: Krg = (1 - (Sw - SWir) / (1 - SWir)) * (1 - ((Sw - SWir) / (1 - Sw)) ^ 0.25 * Sw ^ 0.25)^0.5

Water oil ratio.
      4: KRwo = Krw / Kro
      5: WOr = BO * (VISO / VISW) * (KRwo)

Water gas ratio.
      6: KRwg = Krw / Krg
      7: WGr = BG * (VISG / VISW) * (KRwg)

Water cut for oil wells.
      8: WCo = WOR / (1 + WOR)

Water cut for gas wells:
      9: WCg = WGR / (1 + WGR)

Where:
  BG = volume factor for gas (fractional)
  BO = volume factor for oil (fractional)
  Krg = relative permeability to gas (fractional)
  Kro = relative permeability to oil (fractional)
  Krw = relative permeability to water (fractional)
  KRwg = water to gas permeability ratio (fractional)
  KRwo = water to oil permeability ratio (fractional)
  Sw = water saturation (fractional)
  SWir = irreducible water saturation (fractional)
  VISG = viscosity of gas (cp)
  VISO = viscosity of oil (cp)
  VISW = viscosity of water (cp)
  WCg = water cut for gas well (fractional)
  WCo = water cut for oil well (fractional)
  WGr = water gas ratio (fractional)
  WOr = water oil ratio (fractional)

COMMENTS:
Charts for solving the relative permeability relationships and for water cut below. Viscosity data required for water-oil and water-gas ratio are also given for oil and gas.

Relative permeability from log analysis without core data as a control is probably pointless.

RECOMMENDED PARAMETERS:
See Figures.

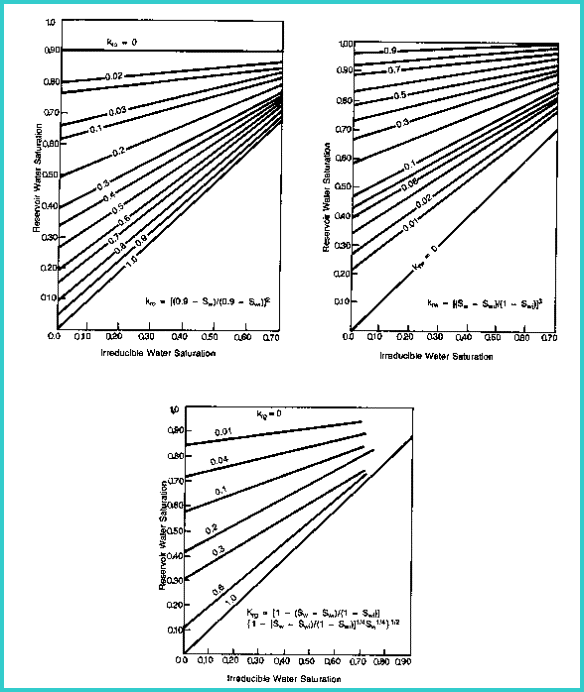

Relative permeability

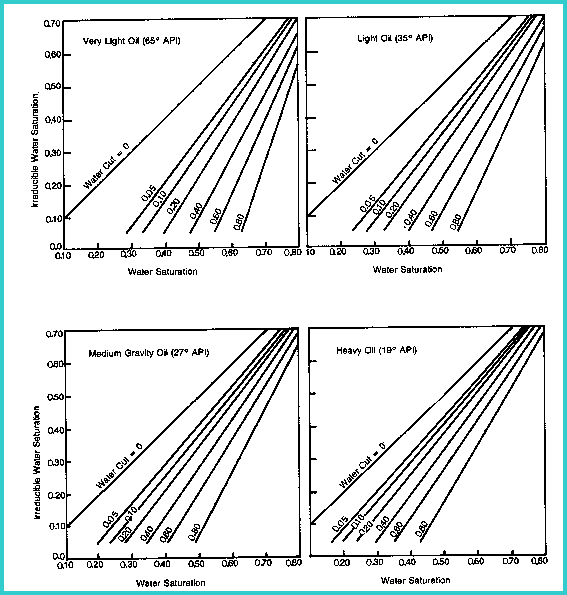

Water cut

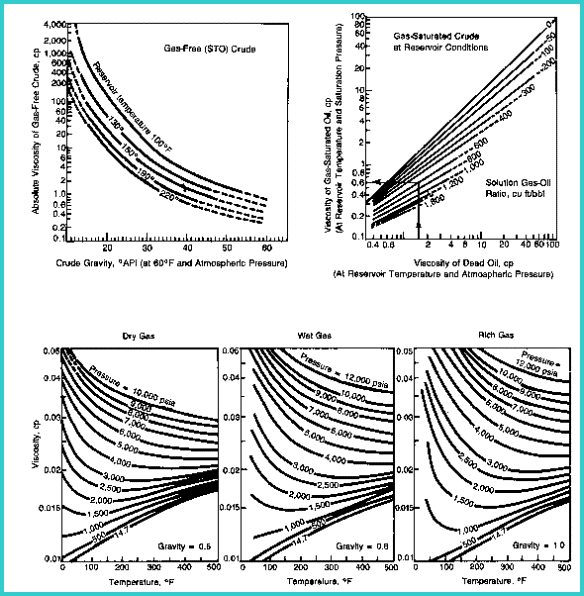

Viscosity

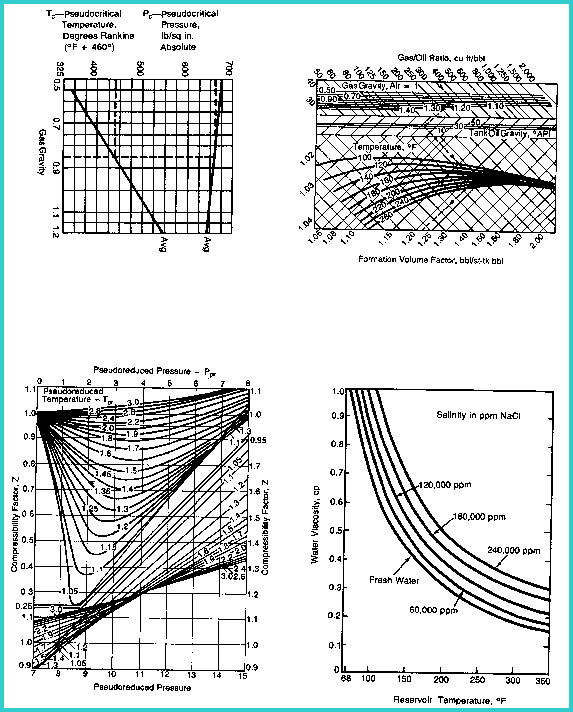

Viscosity of water and pseudo critical gas properties

NUMERICAL EXAMPLE:
1. Assume data from Sand C
PHIe = 0.30
Sw = 0.50
PHIxSW = 0.06
SWir = 0.06 / 0.30 = 0.20
Krw = (0.50 - 0.20) / (1 - 0.20) = 0.375
Kro = (0.9 - 0.50) / (0.9 - 0.20) = 0.571
Krg = (1 - (0.5 - 0.3) / (1 - 0.2)) * (1 - ((0.5 - 0.3) / (1 - 0.5)) ^ 0.25 * 0.5 ^ 0.25) ^ 0.5
= (0.75 * (1 - 0.4 ^ 0.25 * 0.5 ^ 0.25) ^ 0.5 = 0.431
KRwo = 0.375 / 0.571 = 0.657
KRwg = 0.375 / 0.431 = 0.870

2. Assume oil well data:
BO = 0.8
oil gravity = 40 degrees API
VISO = 1.2 cp
FT = 160 degrees F
VISW = 0.5 cp
| salinity = 120,000 ppm
WOr = 0.8 * (1.2 / 0.5) * 0.657 = 1.26

3. Assume gas well data:
BG = 0.8
VISG = 0.015 cp
VISW = 0.5 cp
dry gas
pressure = 1800 psi
salinity = 120,000 ppm
WGr = 0.8 * (0.015 / 0.5) * 0.870 = 0.021

4. Water Cut:
WCo = 1.26 / (1 + 1.26) = 0.557
WCg = 0.021 / (1 + 0.021) = 0.021

Thus, if this is an oil zone, it will produce over 55% water on initial completion. If it is a gas well, it will produce only 2% water.
