CASED HOLE LOGGING TOOL  BASICS
Logging through casing began with the gamma ray log in the late 1930s and this tradition continues today. The gamma ray log is used for depth correlation between logs in the same well and stratigraphic correlation between wells.


The casing collar locator (CCL) was quickly added to the GR tool and this became the standard for depth control. Slim hole tools (1-11/16 inch) are used for through tubing, hostile environments in open hole, or in small diameter strat holes. Full size tools (3-7/8 inch) are used in cased or open hole applications.

In the mid 1940s, the neutron log was added. It could record through casing, tubing, or  open hole. It assisted in correlation and was a porosity indicating log.

The neutron log was calibrated but was recorded in counts per second until about 1970, so the analyst had a fair amount of work to do in order to determine porosity.

>>>> Ancient Logs for porosity from old neutron logs.
>>>> Depth Control with GR + CCL correlation techniques.

Modern gamma ray and compensated neutron logs are properly calibrated and scaled, but a number of environmental corrections may be required, such as those for casing and cement. This neutron log was scaled in porosity units so it could be used more directly for reservoir evaluation than previous neutron logs.

CAUTION: read the log heading carefully - the corrections may have been applied while logging, but maybe not.

The pulsed neutron (thermal decay time, TDT) also followed in the 1970s, as did the natural gamma ray spectral log. With these, we could now assess porosity and water saturation through casing, at least in favourable conditions.

>>>> Pulsed Neutron TDT Logs

Evolution of TDT concepts led to induced gamma ray spectroscopy and advanced pulsed neutron logs that measure the weight fraction of individual chemical elements in the formation. The element weights are converted to minerals and fluids by a least squares solution, which is the final log presentation.

Over the years, logs with names such as chlorine, carbon-oxygen, geochemical (GST), elemental capture spectroscopy (ECS), reservoir saturation (RST), and pulsar log have been available.

>>>> Induced Gamma Ray Spectroscopy Logs (includes RST)

Many other through casing logs in widespread use are describes elsewhere in this Handbook.

>>>> Cement Bond, Cement Mapping Logs
>>>> Casing Inspection Logs
>>>> Production Logs
>>>> Perforating
>>>> Formation Testing
>>>> Completion or Workover Services

Roke Oil Enterprises in Calgary developed a through casing laterolog with a 3 to 6 inch bed resolution and a through casing density log in the 1970s. Both tools were calibrated and worked fine, but are no longer available. You may find them in some Canadian well files.

Roke's Quad Neutron log, also developed in the 1970s, has been modernized and offers porosity, water saturation, and gas detection as output curves. It uses the difference between thermal and epithermal neutron response to determine saturation. Using a chemical source, it is suited to through casing log analysis without the need for conventional open hole logs. The Quad Neutron service is available in Canada and under licence elsewhere.

No major service company took up the challenge of through casing resistivity or density until 2004, when Schlumberger services catalog listed both logs. The dipole shear and compressional sonic log and accelerator-style neutron log had been available for some years, so it was possible to perform a conventional log analysis similar to an open hole analysis. The advantages of this approach is that invasion effects have disappeared and intervals with ancient logs can be re-logged with modern measurements.

>>>> Laterologs
>>>> Sonic Logs
>>>> Density Logs


>>>> Neutron Logs

Some of these logs are described below with emphasis on applications that will be of interest to completion and workover engineers. They are also covered briefly on this page to make the through casing logging options easier to follow.


The modern logs that cannot be run in casing are the dipmeter, resistivity image, nuclear magnetic resonance, and SP.

Petrophysical analysis using these cased hole reservoir measurements are processed along the same lines as with the equivalent open hole logs, with only minor exceptions. The first is that the annulus between the casing and formation must be well cemented, with good cement fill up. Most cased hole logs suffer from poor cement. A good cement bond or cement mapping log should be run and remedial action taken before running cased hole logs for reservoir evaluation.

The analyst needs to determine whether further borehole fluid, casing size and weight, cement sheath, or other environmental corrections are required. Some corrections are made at the time of logging, others are not, and this varies with the age of the tool.



Cased Hole Gamma Ray Log

Gamma ray tools record naturally occurring gamma rays in the formations adjacent to the wellbore. This nuclear measurement indicates the radioactive content of the formations. Effective in any environment, gamma ray tools are the standard device used for correlation of logs in cased and open holes.

Applications

  ■ Depth determination

  ■ Depth correlation within the well and between wells

  ■ Lithology identification

  ■ Qualitative evaluation of shaliness

  ■ Qualitative evaluation of radioactive mineral deposits

  ■ Cased hole perforating depth control

  ■ Positioning for open hole sampling tools

Cased Hole Spectral Gamma Ray Log

Spectral gamma ray tools provide insight into the mineral composition of formations. The total gamma ray spectra measured is resolved into the three most common components of naturally occurring radiation in sands and shales - potassium, thorium, and uranium (K, Th, and U, respectively). These data are used to distinguish important features of the clay or sand around the wellbore. The clay type can be determined, and sand can be identified as radioactive. The deposition of radioactive salts behind the casing by the movement of water can also be identified.

The natural gamma ray spectrometry tool uses five-window spectroscopy to resolve the total gamma ray spectra into K, Th, and U curves. The standard gamma ray (SGR) and the gamma ray minus the uranium (CGR) component are also presented. The computed gamma ray or Th curve can be used to evaluate the clay content where radioactive minerals are present.

Applications

  ■ Cation exchange capacity studies

  ■ Reservoir delineation

  ■ Detailed well-to-well correlation

  ■ Definition of facies and depositional environment

  ■ Igneous rock recognition

  ■ Recognition of other radioactive materials

  ■ Estimated uranium and potassium potentials

  ■ Lithologic analysis log input Nuclear

Cased Hole Formation Resistivity Log
Cased hole formation resistivity logs make direct, deep reading resistivity measurements through casing and cement. The concept of measuring resistivity through casing is not new, but recent breakthroughs in downhole electronics and electrode design have made these challenging measurements possible. Now the same basic measurements can be compared for open- and cased holes.

The effects of invasion are usually dissipated by the time the log is run, so the measurement is considered to be a good representation of true resistivity, as long as cement conditions are adequate.

The tool injects current into the casing with sidewall contact electrodes, where it flows both upward and downward before returning to the surface along a path similar to that employed by open hole laterolog tools. Most of the current remains in the casing, but a very small portion escapes to the formation. Electrodes on the tool measure the potential difference created by the leaked current, which is proportional to the formation conductivity.

Typical formation resistivity values are about 10^9 times the resistivity value of the steel casing. The measurement current escaping to the formation causes a voltage drop in the casing segment. Because the resistance of casing is a few tens of micro ohms and the leaked current is typically on the order of a few mill amperes, the potential difference measured by the CHFR-tool is in nano volts.

Applications

  ■ Resistivity measurement behind casing in new or old wells

  ■ Reservoir monitoring

  ■ Location of bypassed hydrocarbons

  ■ Determination of residual oil saturation

  ■ Contingency logging in wells where openhole logs could not be run

  ■ Primary evaluation where openhole logging is not possible Resistivity Logging

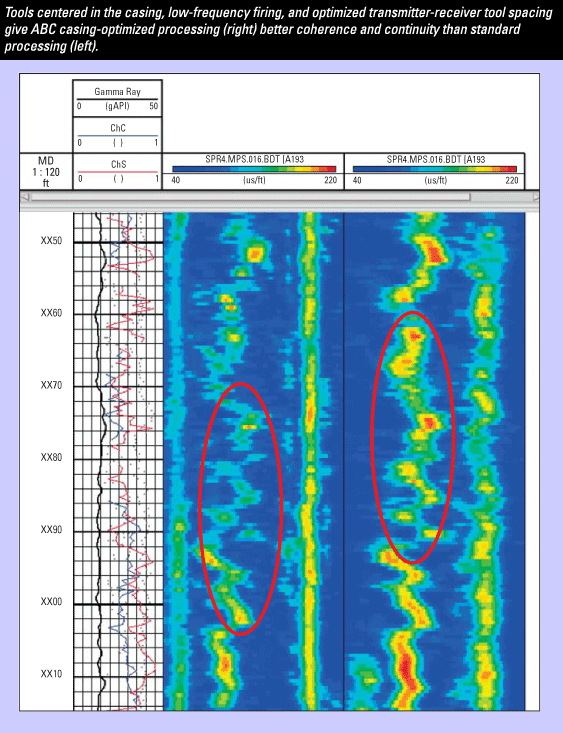

Cased Hole Dipole Shear Sonic Log

Dipole shear sonic coupled with automated sonic waveform processing for slowness determinations, provides accurate formation compressional and shear slowness measurements in cased wells. Slowness processing is based on optimally designed frequency filters and advanced signal processing. This method significantly attenuates casing arrivals to facilitate the clean extraction of formation slowness.

The dipole shear sonic log combines monopole and dipole sonic acquisition capabilities. The transmitter section contains a piezoelectric monopole transmitter and two electrodynamic dipole transmitters perpendicular to each other. An electric pulse at sonic frequencies is applied to the monopole transmitter to excite compressional- and shear-wave propagation in the formation. For Stoneley wave acquisition, a specific low-frequency pulse is used. The dipole transmitters are also driven at low frequency to excite the flexural wave around the borehole.

The tool is made up of three sections: acquisition cartridge, receiver section, and transmitter section. An isolation joint is placed between the transmitter and receiver sections to prevent direct flexural wave transmission through the tool body. The receiver section has an array of eight receiver stations spaced 6 inches. [15 cm] apart and 9 ft (2.74 m) from the monopole transmitter, 11 ft (3.35 m) from the upper dipole transmitter, and 11.5 ft (3.50 m) from the lower dipole transmitter. Each receiver station consists of two pairs of wideband-piezoelectric hydrophones aligned with the dipole transmitters.

Summing the signals recorded by one pair of hydrophones provides the monopole waveform, whereas differentiating them cancels the monopole signal and provides the dipole waveform. When a dipole transmitter is fired, the hydrophone pair diagonally in line with the transmitter is used. Four sets of eight waveforms can be acquired from the four basic operating modes fired in sequence. A special dipole mode enables recording both the inline and crossline (perpendicular) waveforms for each dipole mode.

This mode, called both cross receivers (BCR), is used for anisotropy evaluation.

Applications

  ■ Geophysics

    – Velocity calibration, time/depth conversion

    – Synthetic seismograms

    – Amplitude variation with offset (AVO) calibration

    – Shear seismic interpretation

  ■ Anisotropy

  ■ Petrophysics

    – Porosity estimation (also in cased hole)

    – Lithology and clay identification

    – Gas identification

  ■ Stoneley wave measurement

    – Fracture evaluation

    – Permeability (mobility)

  ■ Geomechanics

    – Pore pressure

    – Wellbore stability

    – Hydrofracture design

    – Sand strength

  ■ Sonic imaging

  ■ Sonic imaging with borehole acoustic reflection survey (BARS)

    – Very long spacing tool (using spacers)

    – Reflection analysis

    – Highly dipping beds

    – Horizontal wells (apparent dip > 45°)

    – Well placement with respect to cap rock

Cased Hole Formation Density LOG

Cased hole formation density logs make accurate formation density measurements in cased wells. A chemical gamma ray source and three-detector measurement system are used to make measurements in a wide range of casing and borehole sizes. The density measurement made by the three detector system is corrected for casing and cement thickness.

The density data are used to calculate porosity and determine the lithology. The combination of density and neutron data is used to indicate the presence of gas.

Applications

  ■ Porosity determination

  ■ Lithology analysis and identification of minerals

  ■ Gas detection

  ■ Hydrocarbon density determination

  ■ Shaly sand interpretation

  ■ Rock mechanical properties calculations

  ■ Determination of overburden pressure

  ■ Synthetic seismogram for correlation with seismic

Cased Hole NEUTRON  Porosity LOGS
Tools using a neutron accelerator source, instead of a chemical source, have become a popular solution for porosity measurements. This service makes accurate formation porosity and sigma measurements in cased wells. The measurement, based on an electronic neutron source instead of a chemical source, uses borehole shielding and focusing to obtain porosity measurements that are affected only minimally by borehole environment, casing, standoff, and formation characteristics such as lithology and salinity.

The large yield of the neutron source enables the use of epithermal neutron detection and borehole shielding. As a result, the porosity measurements are affected only minimally by the borehole environment and formation characteristics, such as lithology and salinity. Five detectors provide information for porosity evaluation, gas detection, shale evaluation, improvement of the vertical resolution, and borehole correction. The measurements can be performed in both cased and open holes.

Compensated neutron logs have traditionally been run as a porosity indicator in cased wells. Although it provides a good estimation of formation porosity in most conditions, the unfocused nature of the CNL log does not allow correction for environmental effects, such as thickness of casing and cement, or effects resulting from the position of the tool and casing in the borehole. For the highest possible accuracy, CHFP service is the measurement of choice.

Compensated neutron tools measure the hydrogen index of downhole formations. The measurements are converted to porosity values, which in combination with density tool measurements provide an indication of lithology and gas in zones of interest. Some compensated neutron tools provide thermal and epithermal measurements. Thermal measurements require a liquid filled borehole. Epithermal measurements can be made in air or gas filled boreholes.

The compensated neutron log tool contains a radioactive source that bombards the formation with fast neutrons. The neutrons are slowed, primarily by hydrogen atoms in the formation. Detectors count the slowed neutrons deflected back to the tool. Because the tool responds primarily to the hydrogen content of the formation, the measurements are scaled in porosity units. Both epithermal (intermediate energy) neutrons and thermal (slow) neutrons can be measured depending on the detector design. These tools use two thermal detectors to produce a borehole-compensated thermal neutron measurement.

The dual-energy neutron log has two thermal and two epithermal detectors that make separate energy measurements for gas detection and improved reservoir description.

Applications

  ■ Porosity determination

  ■ Lithology identification

  ■ Gas detection

  ■ Correlation in cased wells

  ■ Option to pump slim tools down drill pipe

  ■ Formation evaluation behind casing

  ■ Accurate hydrogen index estimation

  ■ Clay analysis

CASED HOLE DUAL BURST PULSED NEUTRON / TDT LOGS
The standard TDT / PNL logging tools provide accurate borehole corrected neutron capture cross section (SIGMA) and neutron porosity (PHItdt) measurements.Although there are more sophisticated tooks (see RST and ECS tools described below), the TDT lod is still widely used around the woekd. They  are cheap, safe, and easy to run. The SIGMA curce gives a direct measure of water saturation in moderate to high saliniinity reservoirs.

The tool features a dual burst neutron generator. A low short burst generates a short (borehole) decay component, and a lengthy, high burst characterizes the long formation decay component. Additionally, the exponential decay model and chartbook solutions of prior tools is replaced by the nuclear diffusion equation model which accounts for non-exponential diffusion and capture in both the wellbore and the formation.  The output is a correct formation sigma, independent of borehole fluid, diffusion coefficients and porosity.  User inputs are minimal (borehole size, casing size and weight).  Other inputs necessary for the diffusion model, are measured by the tool.

Timing gate configuration versus counts, dual burst TDT tools

The Schlumberger TDT-M system utilizes sixteen time gates and one of four possible neutron burst widths and burst repetition rates. Counts from the sixteen gates are combined to form two "sum" gates (plus a background gate) from which SIGMA is computed. As in the TDT-K system, the combination of gates used to form the "sum" gates, as well as the burst width and repetition rate, are selected according to SIGMA (or TAU) of the formation.  Because borehole diffusion is mainly a constituent of the near detector counts, this configuration allows SIGMA to be calculated preferentially using the far detector, giving a more accurate formation SIGMA.

Two processing methods are possible:  a real-time, single component wellsite method, and an offsite VAX model, in which 2 components are fitted independently; the offsite result is deemed accurate when the dual component results are in agreement.  The wellsite model provides the initial SIGMA formation values to the offsite model.  In general, the wellsite model is sufficient for monitoring water movement but the offsite model is recommended in heterogeneous or unknown lithologies, (e.g. having shales, clays or anhydrite), or in complex borehole geometries.  The improved precision of the offsite model makes it a better choice for critical operations such as Log-Inject-Log.

Other service companies offer similar tool designs.



Applications

  ■ Formation evaluation behind casing

  ■ Sigma and porosity measurements.

  ■ Water saturation evaluation in new wells
  ■ Time-lapse water saturation monitoring.
  ■ Water saturation evaluation in old wells where modern openhole logs have not been run

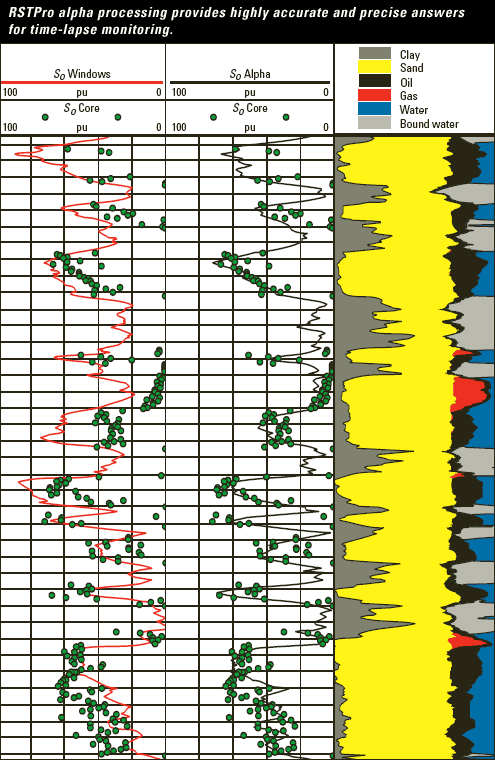

Cased Hole Reservoir Saturation Log
Reservoir saturation tools such as the pulsed neutron (TDT) are still widely used. The newest, the reservoir saturation log (RST) makes both formation sigma and C/O ratio measurements that allow the calculation of water saturation without the need for a resistivity log.

In formations with high-salinity formation water, the sigma measurement has been used for several decades to determine water saturation. The C/O ratio measurement can accurately evaluate water saturation in moderate to high porosity formations regardless of water salinity. This calculation is particularly helpful if the water salinity is low or unknown. If the salinity of the formation water is high, the Dual-Burst Thermal Decay Time measurement is used. A combination of both measurements can be used to detect and quantify the presence of injection water of a different salinity from that of the connate water.

Time-lapse measurements of water saturation can be used to monitor the performance of a well or reservoir over time.  TDT logs have gone through many evolutionary changes over the years so reservoir monitoring is difficult, especially in low porosity reservoirs. Some age related normalization and bore hole corrections are often needed to makes sense of the data.

Applications

  ■ Formation evaluation behind casing

  ■ Sigma, porosity, and carbon/oxygen measurement in one trip in the wellbore

  ■ Water saturation evaluation in old wells where modern openhole logs have not been run

  ■ Measurement of water velocity inside casing, irrespective of wellbore angle (production logging)

  ■ Measurement of near-wellbore water velocity outside the casing (remedial applications)

  ■ Formation oil volume from C/O ratio, independent of formation water salinity

  ■ Capture yields (H, Cl, Ca, Si, Fe, S, Gd, and Mg)

  ■ Inelastic yields (C, O, Si, Ca, and Fe)

  ■ Borehole salinity

 Cased Hole Elemental Capture Spectroscopy

Elemental capture spectroscopy logs use a standard americium beryllium (AmBe) neutron source and a large bismuth germinate (BGO) detector to measure relative elemental yields based on neutron-induced capture gamma ray spectroscopy. The primary elements measured in both open and cased holes are for the formation elements silicon (Si), iron (Fe), calcium (Ca), sulfur (S), titanium (Ti), gadolinium (Gd), chlorine (Cl), barium (Ba), and hydrogen (H).

Wellsite processing uses the 254 channel gamma ray energy spectrum to produce dry-weight elements, lithology, and matrix properties. The first step involves spectral deconvolution of the composite gamma ray energy spectrum by using a set of elemental standards to produce relative elemental yields. The relative yields are then converted to dry-weight elemental concentration logs for the elements Si, Fe, Ca, S, Ti, and Gd using an oxides closure method.

Matrix properties and quantitative dry-weight lithologies are then calculated from the dry-weight elemental fractions using the SpectroLith* empirical relationships derived from an extensive core chemistry and mineralogy database. The calculated outputs are
  ■ dry-weight lithology fractions (from elements)

    – total clay

    – total carbonate

    – anhydrite + gypsum from S and Ca

    – QFM (quartz + feldspar + mica)

    – pyrite

    – siderite

    – coal

    – salt

  ■ matrix properties (from elements)

    – matrix grain density

    – matrix thermal and epithermal neutron

    – matrix sigma. Applications

  ■ DecisionXpress* integrated petrophysical analysis

  ■ Clay fraction independent of gamma ray, spontaneous potential, and density neutron

  ■ Carbonate, gypsum or anhydrite, pyrite, siderite, coal, and salt fractions for complex reservoir analysis

  ■ Matrix density and matrix neutron values for more accurate porosity calculation

  ■ Sigma matrix for cased and openhole sigma saturation analysis

  ■ Mineralogy-based permeability estimates

  ■ Quantitative lithology for rock properties modeling and pore pressure prediction from seismic data

  ■ Geochemical stratigraphy (chemostratigraphy) for well-towell correlation

  ■ Enhanced completion and drilling fluid recommendations based on clay versus carbonate cementation

  ■ Coalbed methane bed delineation, producibility, and in situ reserves estimation
