COAL BED METHANE BASICS
Coal-bed methane (CBM) is an economic source of natural gas that is generated and stored in coal beds. It is a widely occurring, exploitable resource that can be easily recovered and used near the well or where
gas-pipeline infrastructure currently exists.

Coal acts as both source rock and reservoir rock for methane. Methane is generated by microbial (biogenic) or thermal (thermogenic) processes shortly after burial, and throughout the diagenetic cycle resulting from further burial.

Much of this gas is physically "sorbed" on coal surfaces. Some higher ends may also be produced by coal, such as ethane, and propane, but usually only a few percent of the total gas.

Adsorption is the process of gaining gas on a microporous surface. Desorption is the process of releasing gas from such a surface.


The space between these surfaces are called cleats and range in size from obvious macrofractures to virtually invisible nanofractures. These cleat patterns are crucial for gas production because they allow for the release of sorbed gas within coal beds and migration to the well bore

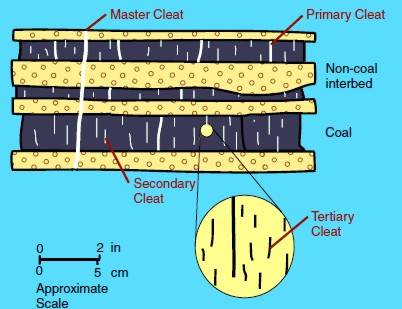

Illustration of cleats, large to tiny

One gram of coal can contain as much surface area as several football fields and therefore is capable of sorbing large quantities of methane. One short ton (2000 pounds mass) of coal can store about 1,300 m3 of methane. Depending on reservoir pressure, not all the storage capacity is filled with gas.

Coal-bed gas content must have reached near-saturation, either by biogenic or thermogenic gas-generation processes, to be economically viable. Cleats must be present to allow for connectivity between sorption sites. If the coal-bed horizons are buried deeply (>2000 meters), cleats are closed because of overburden pressure acting on the structurally weak coal bed. Cleats can also be filled with other minerals, reducing their effective permeability.

Methane sorbed within coal beds is regulated by the hydrodynamic pressure gradient. Methane is maintained within the coal bed as long as the water table remains above the gas-saturated coal. If the water table is lowered by basin or climatic changes, then methane stored within the coal is reduced by release to the atmosphere.

Many coal beds need to be de-watered before they can produce gas. Some coal beds have been de-watered naturally or by crossflows due to previous drilling for oil or gas in nearby wells. Poor quality cement jobs are a major cause of such crossflows.

Cleats are tiny (black) but may be numerous

CBM wells, unlike conventional oil and gas producers, usually show an increase in the amount of production (after initial de-watering). As a coal is de-watered, the cleat system progressively opens farther away from the well. As this process continues, gas flow increases from the expanding volume of de-watered coal. Water production decreases with time, which makes gas production from the well more economical.

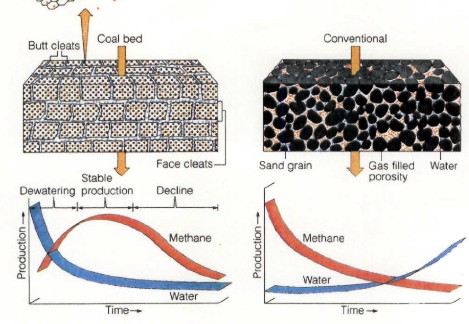

Comparison of conventional gas production and CBM production characteristics


Sorption isotherms
Sorption isotherms indicate the maximum volume of methane that a coal can store under equilibrium conditions at a given pressure and temperature.

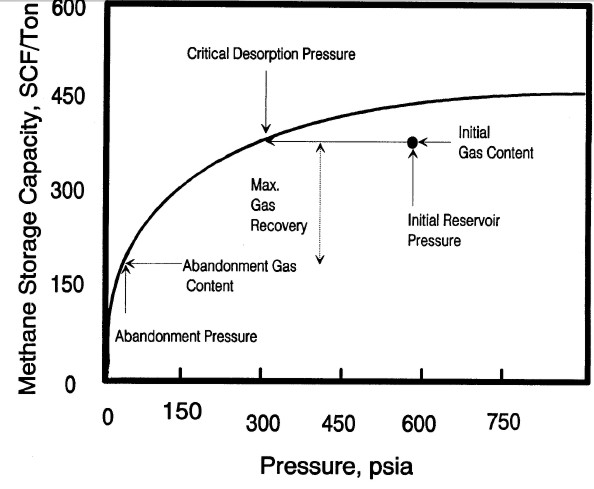

Typical sorption isotherm showing initial reservoir gas content vs pressure, critical desorption pressure, and abandonment conditions  Gas will not flow until reservoir pressure is less than critical pressure. Recovery factor and recoverable reserves can be estimated by comparing initial and abandonment gas content values on the isotherm curve.

The Langmuir equation is used to predict the maximum gas storage capacity of a reservoir and the equilibrium pressure . Most CBM reservoirs are somewhat undersaturated, so the stored gas is less than the capacity of the reservoir. A few are reported to be hypersaturated. The equations are::
      1: K1 = 0.21258 * Tf^0.5
      2: K2 = 2.82873 – 0.00268 * Tf
      3: K3 = 0.00259 * Tf + 0.50899
      4: K4 = 0.00402 * Tf + 2.20342
      5: Gmax = 10^(K1 * log(Wfcarb / Wwtr) + K2)
      6: Pr  = 10^(K3 * log(Wfcarb / Wwtr) + K4)

Where:
  Gmax = gas volume at infinite pressure (ft3/ton)
  Pr = Langmuir pressure, at which sample’s gas content is ½ Gmax (atmospheres)
  Tf = temperature (ºC)
  Wfcarb = mass fraction of fixed carbon (fractional)
  Wwtr = mass fraction of moisture (fractional)

Wfcarb and Wwtr are usually measured in the lab during a Proximate Analysis. Log analysis methods for obtaining these values are described in Coal Analysis.

Numerical Example:
  Given:      Wash      Wfcarb      Wwtr      Pf atm       Tf ºC       DEPTH m   Note 100 atm = 1466 psi = 10132 kPa
                   0.20         0.48          0.32         100            30           1000

    K1 = 1.2   K2 = 2.7   K3 = 0.6   K4 = 2.3
    Gmax = 898.2 Scf/ton    Pr = 267.5 atm


CBM GAS CONTENT FROM CORE OR SAMPLE ANALYSIS
Finding the actual gas content, Gc, in the lab can be done directly as part of the Proximate Analysis, or indirectly. The direct method of determining sorption isotherms involves drilling and cutting core that is immediately placed in canisters, followed by measurements of the volume of gas evolved from the coal over time.

The indirect method takes advantage of core or cuttings that have been stored and does not require fresh core, thus making this method more economical. Sorption isotherms are experimentally measured using a powdered coal sample whose saturated methane content at a single temperature is measured at about six pressure points.

Moisture content in a coal decreases the sorption capacity. Because coal loses moisture at a variable rate subsequent to removal from the borehole, a standard moisture content is used when measuring sorption isotherms.

Two gas content values are recorded. One is the actual gas content of the bulk coal; the second is related to the dry, ash-free state of the coal, as in the table below.

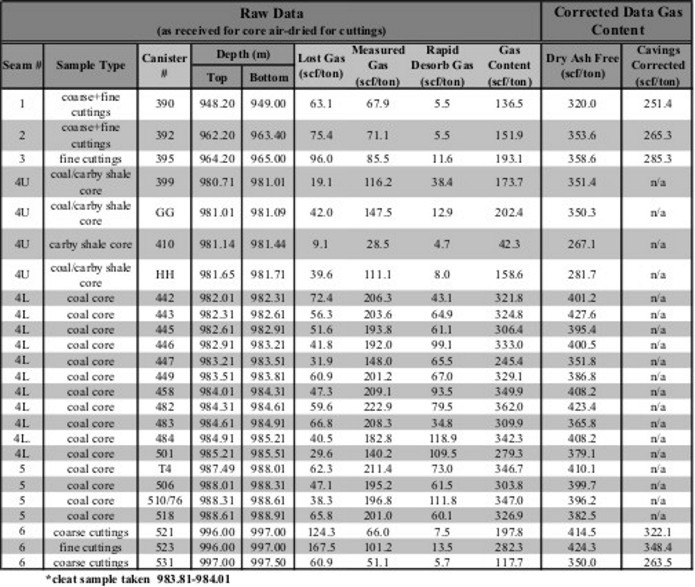

Gas content evaluation of coal beds. Notice that the dry, ash-free values are considerably higher than the actual measured values. As well, an estimate of the "lost gas" was made for each sample to account for gas evolved from the sample before
the lab measurements were made.

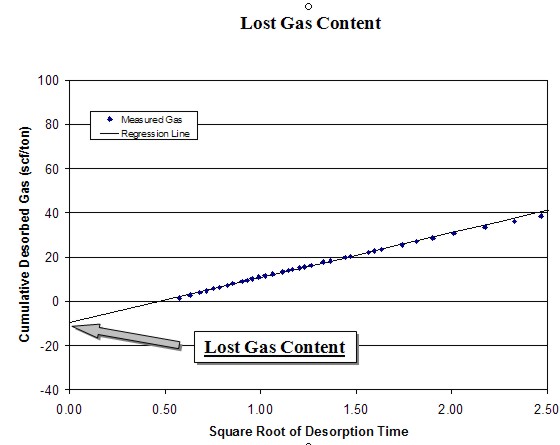

The desorption data obtained during the first several hours can be used to calculate the lost gas component.  Cumulative desorbed gas is plotted against the square root of desorption time.  A regression line is drawn through the first 4 to 6 hours of data points and extrapolated back to time zero. The intercept of the regression line at time zero is the lost gas, added to the actual desorbed gas volume to obtain the total actual gas. This value is further adjusted using the ash and water content from the proximate analysis to obtain the dry, ash-free value.

The sample is allowed to desorb for a period of approximately 3 months or until desorption rates drop below 5cc per day for a period of one week. Initial desorption volumes are measured using a 1000 cc volumetric cylinder. Successive measurements use a 500cc and finally a 250cc volumetric cylinder. The evolving gas pushes water out of the cylinder, and the volume of water is measured to calculate the volume of gas released.

Residual gas is the gas that remains in the matrix of the sample after desorption is complete. To determine the residual gas content, the sealed samples are heated in a drying oven to 50 C in order to drive off the remaining gas. As with the measured gas volumes, the residual gas content is measured by water displacement.

"Rapid desorb" is a technique to decrease the total desorption time. Rapid desorb allows for the determination of the lost gas component and the early time measured gas content. After initial desorption has slowed down, the canisters are placed into a temperature bath that is greater than 50 C and allowed to fully desorb. The increased temperature accelerates the desorption rate. With rapid desorb it is not possible to differentiate residual gas from desorb gas.

All desorption measurements must be corrected to standard atmospheric temperature and pressure. By correcting to standard conditions, gas contents from various well locations may be compared. All canisters must also be corrected for any expansion and contraction of void volume (headspace) within the canister. If the headspace is not corrected for, changes in atmospheric pressure or temperature are not accurately reflected in the desorption data. All efforts are made to minimize the amount of headspace within each of the canisters.

Gas content (Gc) results are usually given as scf/ton or cc/gram. Multiply Gc in cc/gram by 32.18 to get Gc in scf/ton.


CBM Gas In Place - basic approach
Gas in place is calculated from the isotherm curve, or from the actual gas content found in the lab, by using coal bed thickness and coal density as measured by well logs:
      7: GIPcbm = KG6 * Gc * DENS * THICK * AREA

Where:
  GIPcbm = gas in place (Bcf)
  Gc = sorbed gas from isotherm or coal analysis report (scf/ton)
  DENS = layer density from log or lab measurement (g/cc)
  THICK = coal seam thickness (feet)
  AREA (acres)
  KG6 = 1.3597*10^-6

If AREA = 640 acres, then GIP = Bcf/Section (=Bcf/sq.mile)
Multiply meters by 3.281 to obtain thickness in feet.
Multiply Gc in cc/gram by 32.18 to get Gc in scf/ton.

COMMENTS
Typical coal densities are in the range of 1.20 to 2.00 g/cc. Older density logs have a hard time reading less than 1.5 g/cc (FDC logs) but modern LDT logs can do it well. Some paper logs may not show the backup scale for density less than 2.0 g/cc - check the digital file. If density cannot be obtained from logs, use lab values or estimates.

CAUTION: If Gc is an actual measurement, the above equation gives reasonable results.. If Gc is for  the dry, ash-free case or a theoretical value, the GIP from equation 7 must be adjusted to represent the actual coal by multiplying GIP by (1 - Vash - Vwtr).

Note that free gas in the cleats is assumed to be negligible in most coals. In computer software, coal is usually triggered and PHIe set to zero, and conventional log analysis models used where there is no coal. Triggers are chosen based on density, neutron, sonic, or resistivity, or some combination of these.

Recoverable gas can be estimated by using the sorption curve at abandonment pressure (Ga) and replacing Gc in Equation 7 with (Gc - Ga).


Summary table of gas desorption analysis

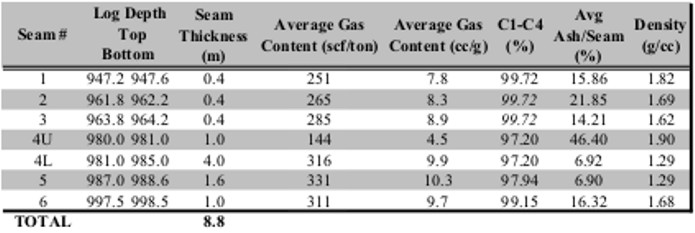

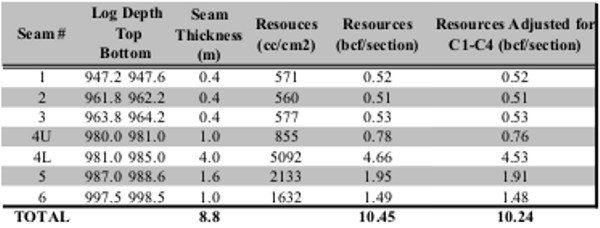

Gas in place calculation based on proximate analysis and gas desorption measurements shown
 in previous tables.


Well log showing location of coal layers analyzed by proximate and gas desorption analysis. Log curves are GR, CAL, PE, neutron, density, density correction.
